THICKNESS(mm): 8.5

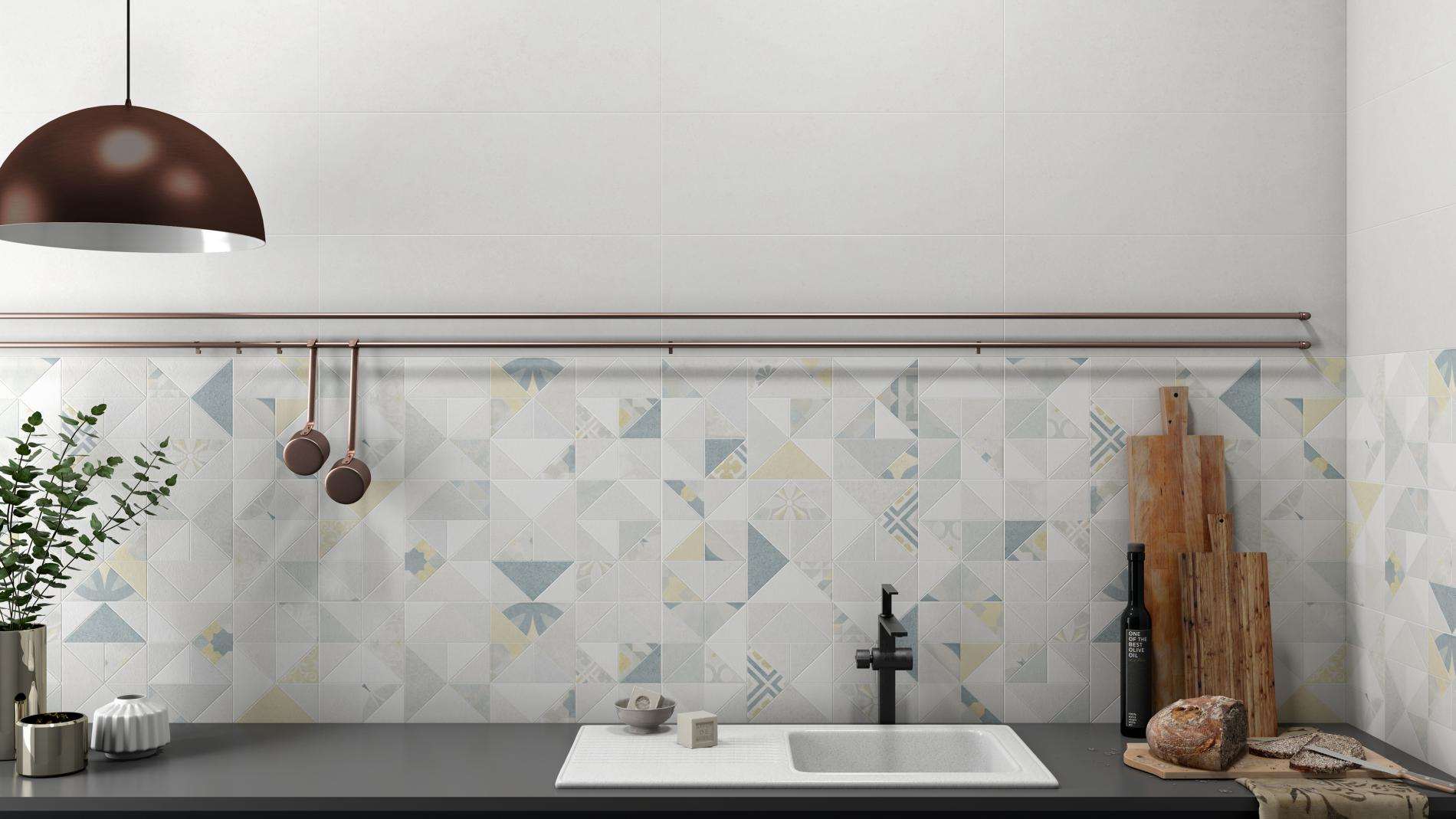

FAMILY: RED BODY WALL TILES

NUMBER OF DESIGNS: 4

TEST RESULT

UNE-EN ISO 10545-2 DIMENSIONAL FEATURES COMPLIES WITH THE STANDARD

UNE-EN ISO 10545-3 WATER ABSORPTION 16%

UNE-EN ISO 10545-4 MODULUS OF RUPTURE – BREAKING STRENGTH 600-900 N

MODULUS OF RUPTURE – BENDING STRENGTH 15-25 N/mm2

UNE-EN ISO 10545-8 LINEAR THERMAL EXPANSION <7,0 x 10-6 oC-1

UNE-EN ISO 10545-9 THERMAL SHOCK RESISTANCE RESISTS

UNE-EN ISO 10545-11 CRAZING RESISTANCE RESISTS

UNE-EN ISO 10545-13 CHEMICAL RESISTANCE – AMMONIUM CHLORIDE 100 G/L A

CHEMICAL RESISTANCE – SODIUM HYPOCHLORITE 20 MG/L A

CHEMICAL RESISTANCE – HYDROCHLORIC ACID 3% COMPLIES WITH THE STANDARD

CHEMICAL RESISTANCE – CITRIC ACID 100 G/L COMPLIES WITH THE STANDARD

CHEMICAL RESISTANCE – POTASSIUM HYDROXYDE 30 G/L COMPLIES WITH THE STANDARD

UNE-EN ISO 10545-14 STAIN RESISTANCE – GREEN AGENT IN LIGHT OIL 5

STAIN RESISTANCE – IODINE SOLUTION IN ALCOHOL 5

STAIN RESISTANCE – OLIVE OIL 5
