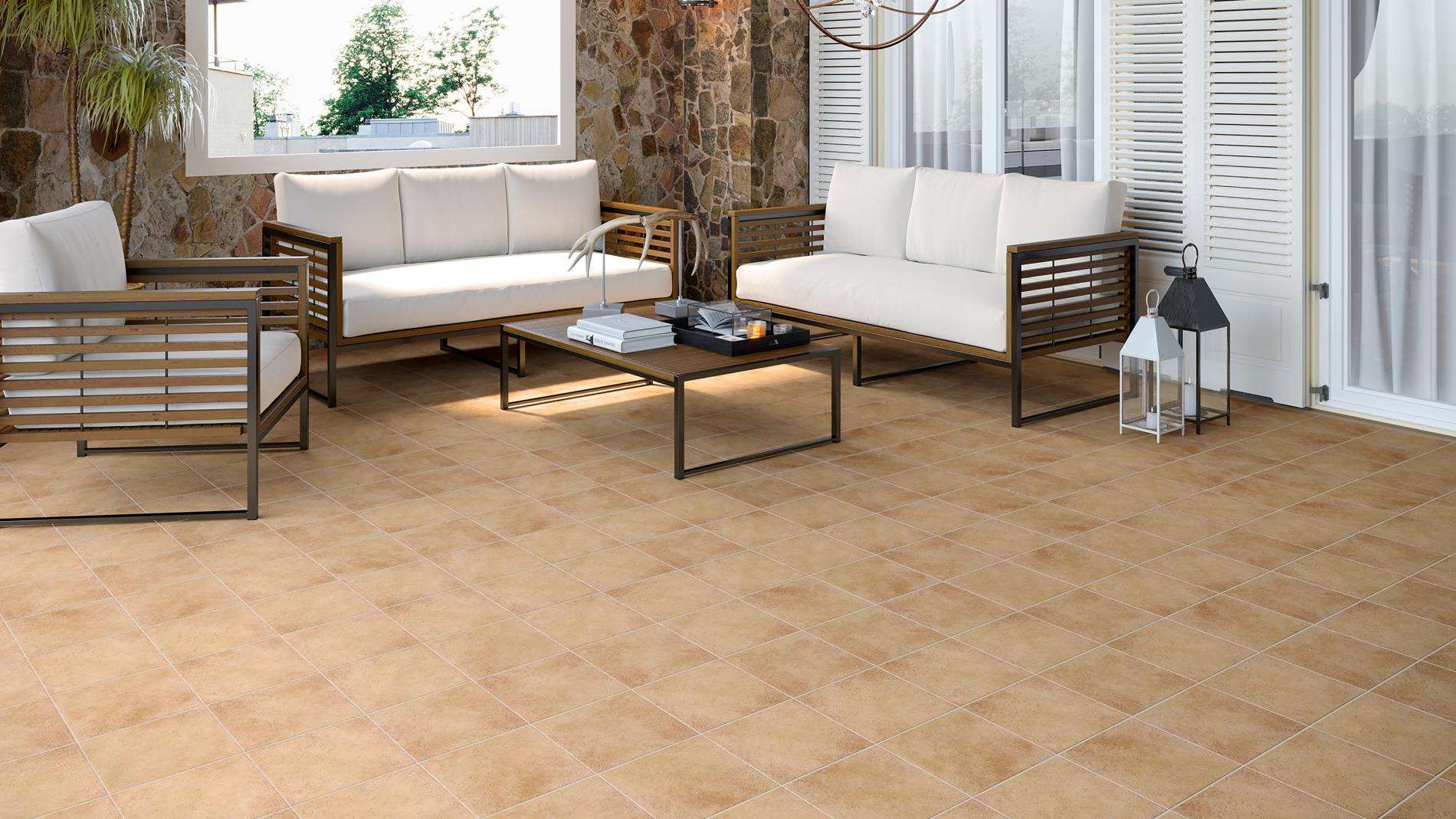

Le piastrelle per rivestimenti in ceramica di Disegnarecasa conferiscono colore e carattere,

rendendo l’ambiente caldo e confortevole.

Il materiale, adatto per interni, ha ottime prestazioni in termini di resistenza e durevolezza.

SCHEDA TECNICA

SIZE: 33,3×33,3

THICKNESS(mm):

TILE TYPE: GL

FINISH: MATT

FAMILY: RED BODY PORCELAIN TILE

TEST RESULT

UNE-EN ISO 10545-2 DIMENSIONAL FEATURES COMPLIES WITH THE STANDARD

UNE-EN ISO 10545-3 WATER ABSORPTION <= 0,5 %

UNE-EN ISO 10545-4 MODULUS OF RUPTURE – BREAKING STRENGTH 1600-2400 N

MODULUS OF RUPTURE – BENDING STRENGTH 35-45 N/mm2

UNE-EN ISO 10545-6 RESISTANCE TO DEEP ABRASION (MM3) NOT APPLY

UNE-EN ISO 10545-7 RESISTANCE TO SURFACE ABRASION PEI IV

UNE-EN ISO 10545-8 LINEAR THERMAL EXPANSION <7,0 x 10-6 oC-1

UNE-EN ISO 10545-9 THERMAL SHOCK RESISTANCE RESISTS

UNE-EN ISO 10545-11 CRAZING RESISTANCE RESISTS

UNE-EN ISO 10545-12 FROST RESISTANCE RESISTS

UNE-EN ISO 10545-13 CHEMICAL RESISTANCE – AMMONIUM CHLORIDE 100 G/L A

CHEMICAL RESISTANCE – SODIUM HYPOCHLORITE 20 MG/L A

CHEMICAL RESISTANCE – HYDROCHLORIC ACID 3% COMPLIES WITH THE STANDARD

CHEMICAL RESISTANCE – CITRIC ACID 100 G/L COMPLIES WITH THE STANDARD

CHEMICAL RESISTANCE – POTASSIUM HYDROXYDE 30 G/L COMPLIES WITH THE STANDARD

UNE-EN ISO 10545-14 STAIN RESISTANCE – GREEN AGENT IN LIGHT OIL 5

STAIN RESISTANCE – IODINE SOLUTION IN ALCOHOL 5

STAIN RESISTANCE – OLIVE OIL 5

SLIP RESISTANCE

TEST RESULT

UNE 41901:2017 EX SLIP RESISTANCE (PENDULUM) CLASE 1

DIN 51130 CRITICAL ANGLE OF SLIP (INCLINED PLATFORM) –

DIN 51097 CRITICAL ANGLE OF SLIP. WET-LOADED BAREFOOT AREAS –

BS7976 (PTV) WET CLASSIFICATION ACCORDING TO PENDULUM TEST VALUES (PTV) WET –

ANSI A326.3 DYNAMIC COEFFICIENT OF FRICTION (DCOF) OF RIGID FLOORS. –
